Features:
- 2.4Ghz wireless transmission between camera and monitor
- Mini stainless steel insertion tube, dia.: 9mm
- Tube length 300mm
- Side view camera head, 380TVL
- 2 high intensity LEDs on camera head, providing light up to 1.5 meters
- Video out function
- 3.5" TFT-LCD wireless monitor with SD card recording (Max. SD card: 32GB)
- Waterproof level: IP67 (camera tube only)
- Built-in Rechargeable Li-battey for both camera and monitor
- Multi-language support

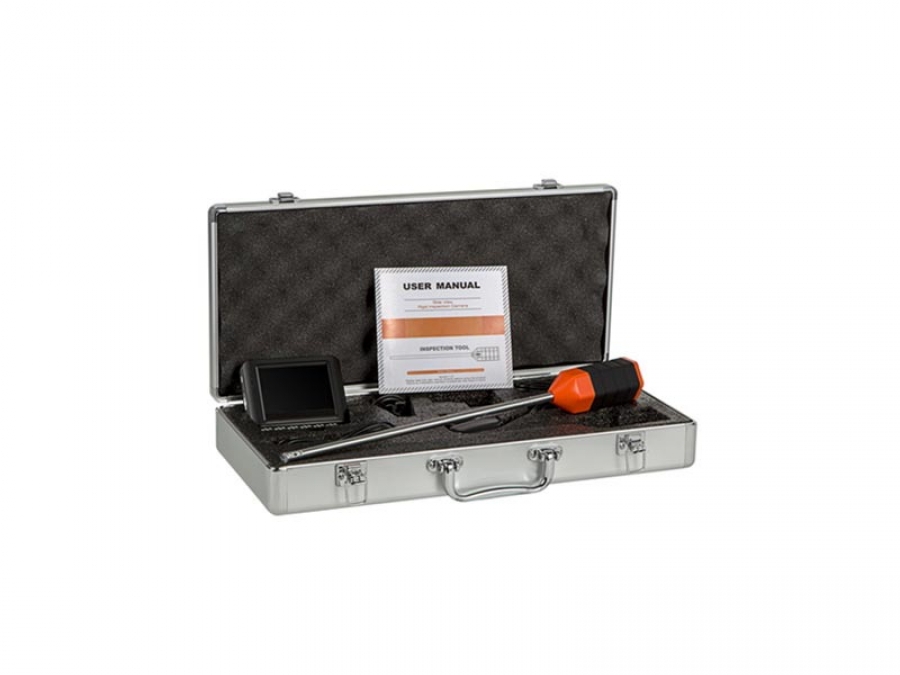

What’s included?

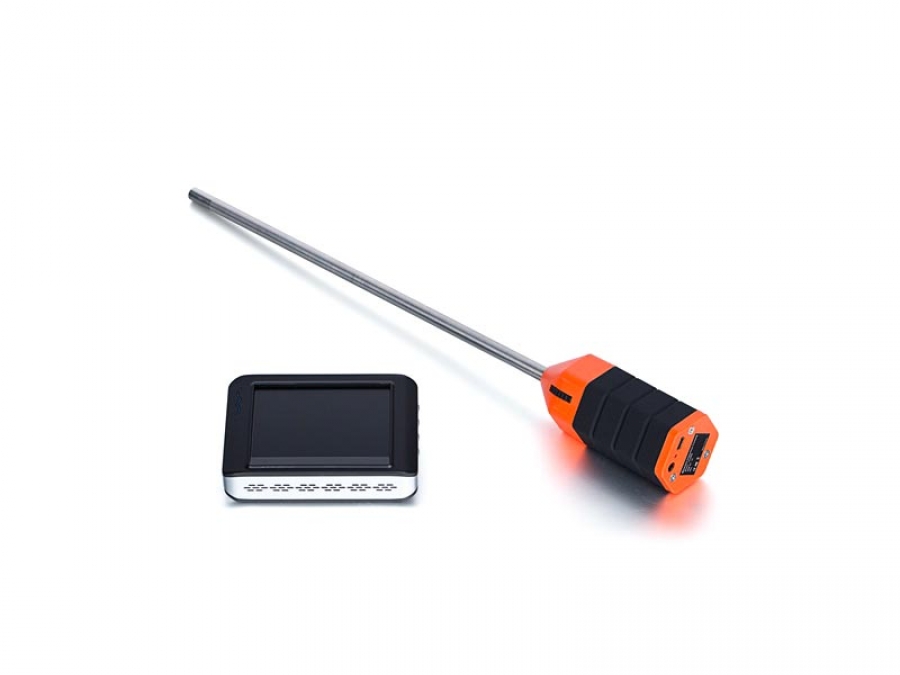

- 1 x camera probe
- 1 x monitor
- 1 x USB cable
- 1 x video out cable
- 1 x magnet stand for monitor
- 1 x power adapter for monitor
- 1 x power adapter for camera
- 1 x manual
- 1 x Aluminum Case
Specifications:

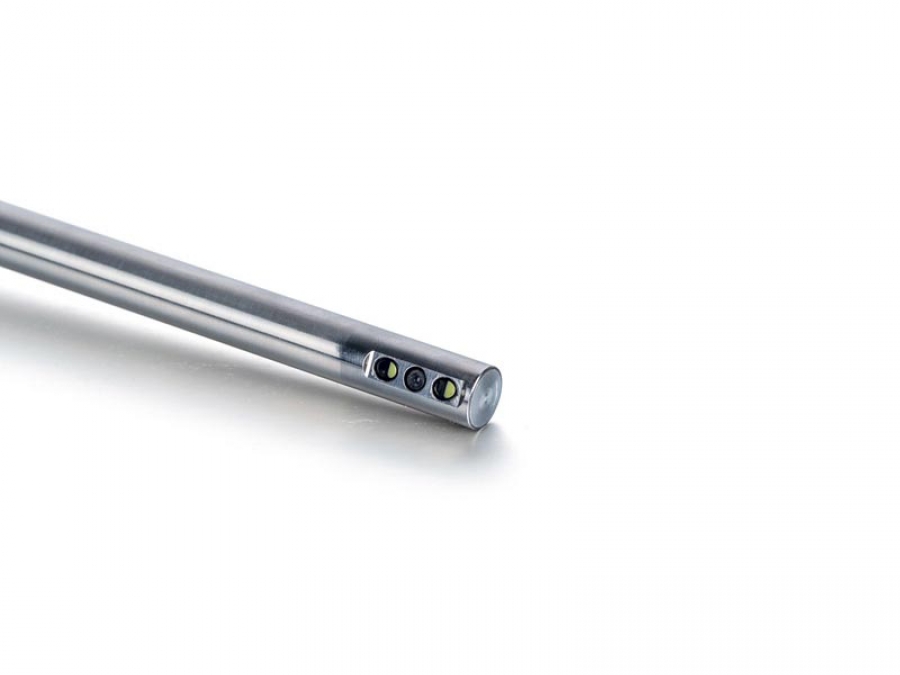

Camera
- Image sensor:CMOS
- Diam. of Insertion Tube:9mm
- Insertion Tube Length:300mm
- Overall Length:400mm
- Tube Material:Stainless Steel
- Light Source:2 high intensity LEDs for 1.5m lighting distance
- Effective Pixels:768 x 494(NTSC) / 752 x 582(PAL)
- Mains Battery Charger:Yes
- Depth of Field (DOF):6cm-infinite
- Field of View (FOV):55°
- Water Proof:IP67 (Probe only)
- Operation Temperature:-10oC ~ 60oC
- Battery capacity:1500mAh
- Work Time:4 hours
- Charge time:5 hours

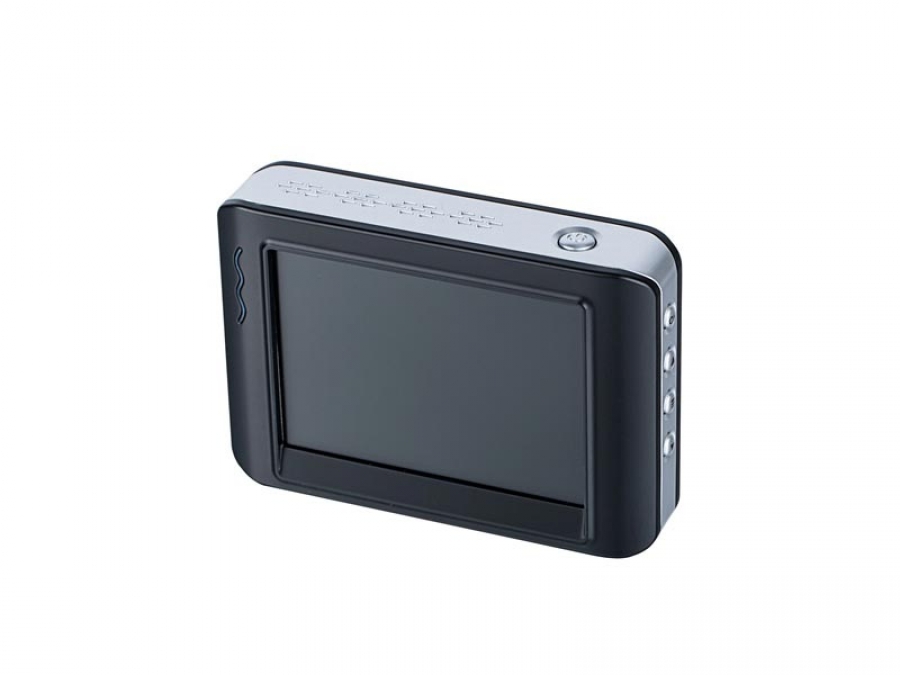

Monitor
- Screen Size:3.5" TFT-LCD
- Display Resolution:320(R.G.B.) x 240dot
- Video Format:NTSC / PAL
- Modulation Mode:FM
- Receive Sensitivity:-85dBm (module)
- Built-in Li-Battery Capacity:1100MAH/3.7V
- Charge Time/Work Time:3 hours
- Consumption Current:500MA(MAX)
- Memory:Micro SD Card
- Picture Format:JPG
- Video Format:AVI
- Picture/Video Resolution:640x480
- Frame Rate:30Frame/S
- Operation Temperature:0~+45oC
- Storage Temperature:-20~+60oC
Packing details:
- 1 unit in one carton
- Carton G.W.: 2.7kg
- Carton Measurement: 55 x 20x 6.5cm
