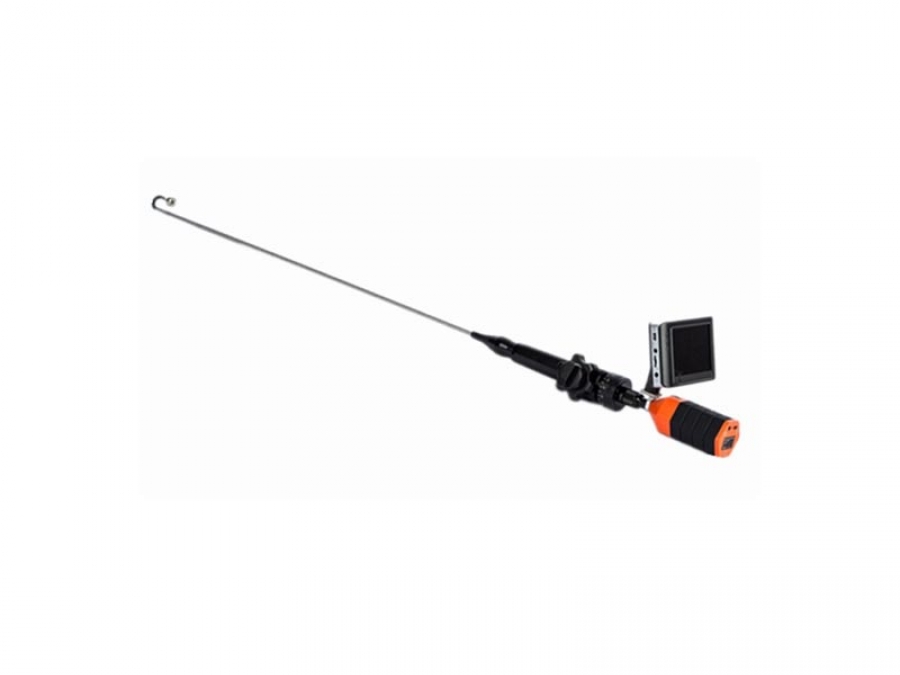

Equipped with IP67 waterproof camera with 63cm rigid stainless steel tube that extends the area of inspection.
Features:
- 13.8mm color camera head
- resolution: 450,000 pixels

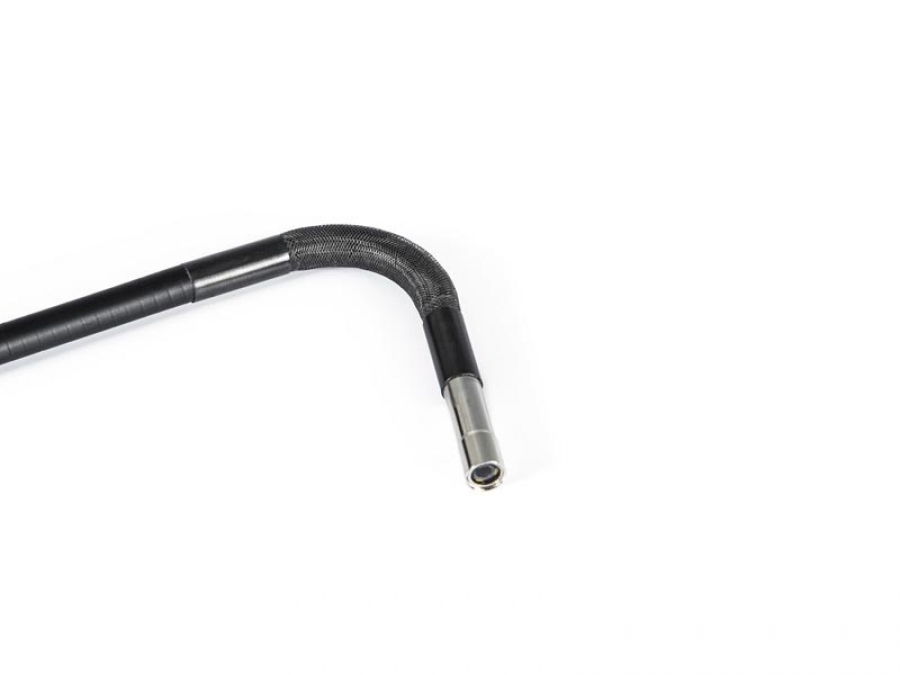

- articulation: 2-way,300 degrees
- 4 white leds for night vision
- Rigid Stainless steel tube, 63cm lengh
- 3.5" wireless monitor with SD card recording/still image capture
- Rechargeable li-battery in both camera handle and monitor
- Water proof level: IP67
- With Aluminium tool case
Applications:
This Inspection Camera can work on different fields such as in auto maintenance and production, engine inspection, plane repair, emergency rescue, army exploration, pipeline detection, sewerage maintenance, and in any deep area that can't be reach by human hands
What’s included?
- 1 x camera probe
- 1 x monitor
- 1 x USB cable
- 1 x video out cable
- 1 x magnet stand for monitor
- 1 x power adapter for monitor
- 1 x power adapter for camera
- 1 x manual
- 1 x Aluminum Case
Specifications:
Camera
- Image sensor:CMOS
- Diam. of Insertion Tube:13.8mm
- Insertion Tube Length:63cm
- Tube Material:Stainless Steel
- Light Source:4 high intensity LEDs for 1.5m lighting distance
- Effective Pixels:720 x 625(NTSC) / 720 x 480(PAL)
- Field of View (FOV):55°
- Bending anglea:300°
- Water Proof:IP67 (Probe only)
- Illuminative distance:0-0.5m
- Transmission distance:10m(Max.)
- Transmitting frequency:2468Mhz
- Current consumption:260mA
- Work Time: 5 hours
- Weight:176g
- Operation Temperature:-10oC ~ 60oC

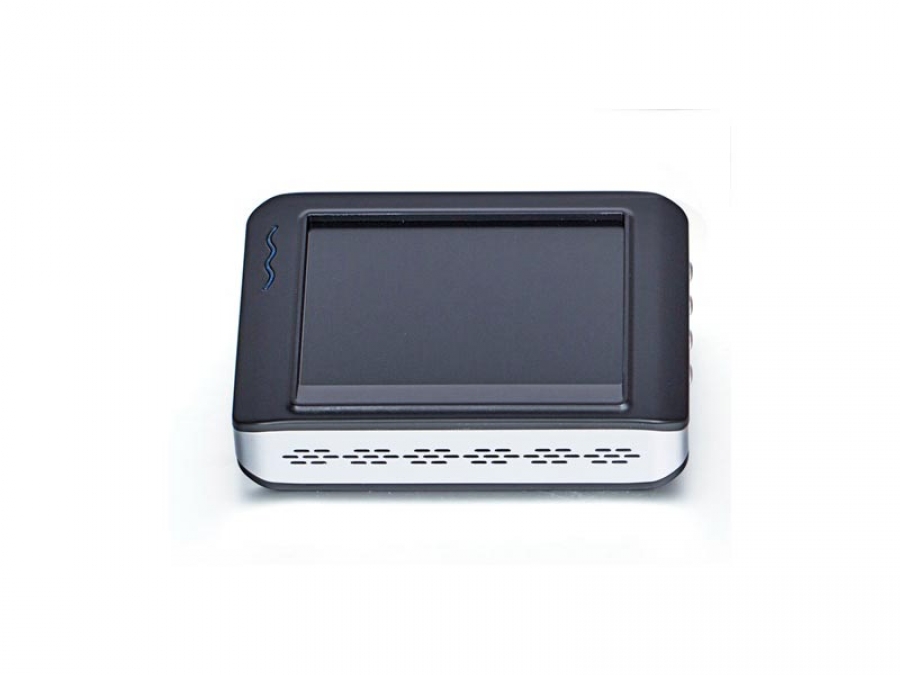

Monitor
- Screen Size:3.5" TFT-LCD
- Display Resolution:320(R.G.B.) x 240dot
- Video Format:NTSC / PAL
- Modulation Mode:FM
- Receive Sensitivity:-85dBm (module)
- Built-in Li-Battery Capacity:1100MAH/3.7V
- Charge Time/Work Time:3 hours
- Consumption Current:500MA(MAX)
- Memory:Micro SD Card
- Picture Format:JPG
- Video Format:AVI
- Picture/Video Resolution:640x480
- Frame Rate:30Frame/S
- Operation Temperature:0~+45oC
- Storage Temperature:-20~+60oC
Packing details:
- 1 unit in one carton
- Carton G.W.: 3.2kg
